Triangle Solver

(Python 3.x)

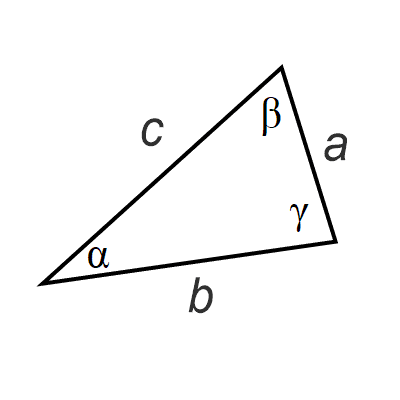

Solves a triangle by any permutation of sides and angles given

Download source code: Universal_Triangle_Solver.py

import numpy as np

class Triangle:
	def __init__( self, s = [-1.0,-1.0,-1.0], a = [-1.0,-1.0,-1.0]):
		self.__sideNames__ = ['a', 'b', 'c']
		self.__angleNames__ = ['alpha', 'beta', 'gamma']
		self.sides = np.array( s)
		self.angles = np.array( a)
		self.Verbose = False
		self.Solve()
		return
	def Solve( self):
		self.__solveAngle__(2,0,1)
		self.__solveAngle__(0,1,2)
		self.__solveAngle__(1,2,0)
		self.__solveSide__(2,0,1)
		self.__solveSide__(0,1,2)
		self.__solveSide__(1,2,0)
		self.__solveAngle__(2,0,1)
		self.__solveAngle__(0,1,2)
		self.__solveAngle__(1,2,0)
		return
	def Print( self):
		for i in range(3):
			print( "{:s} = {:.3f}\t {:s} = {:.3f}".format(
				self.__sideNames__[i], self.sides[i], self.__angleNames__[i], self.angles[i]))
		return
	def SolveInteractive( self):
		self.sides = self.__getInput__( "{:s} {:s} {:s}".format(
			self.__sideNames__[0], self.__sideNames__[1], self.__sideNames__[2]))
		i = self.__CountDefinedSides__()
		if i <= 0:
			print( "WARNING: At least two angles should be given")
		if i < 3:
			self.angles = self.__getInput__( "{:s} {:s} {:s}".format(
				self.__angleNames__[0], self.__angleNames__[1], self.__angleNames__[2]))
		else:
			self.angles = -np.ones(3)
		if self.Verbose:
			print( "Initial Triangle:")
			self.Print()
		self.Solve()
		if self.Verbose:
			print( "Solution Triangle:")
		self.Print()
		return
	def __getInput__(self, question):
		i = 0
		s = str( input( question + " = "))
		ss = s.split(" ")
		try: a = float( ss[0])
		except: a = -1
		try: b = float( ss[1])
		except: b = -1
		try: c = float( ss[2])
		except: c = -1
		return np.array( [a,b,c])
	def __CountDefinedSides__(self):
		i = 0
		for s in self.sides:
			if s > 0: i += 1
		return i
	def __solveAngle__(self, il, i, ir):
		if self.angles[i] > 0: return
		if self.angles[il] > 0 and self.angles[ir] > 0:
			self.angles[i] = self.__SimpleAngle__(il, i, ir)
			return
		if self.angles[il] > 0 and self.sides[il] > 0 and self.sides[i] > 0:
			self.angles[i] = self.__SineTheoremAngle__(il, i)
			return
		if self.angles[ir] > 0 and self.sides[ir] > 0 and self.sides[i] > 0:
			self.angles[i] = self.__SineTheoremAngle__(ir, i)
			return
		if self.sides[il] > 0 and self.sides[ir] > 0 and self.sides[i] > 0:
			self.angles[i] = self.__CosineTheoremAngle__(il, i, ir)
			return
		return
	def __solveSide__(self, il, i, ir):
		if self.sides[i] > 0: return
		if self.angles[il] > 0 and self.sides[il] > 0 and self.angles[i] > 0:
			self.sides[i] = self.__SineTheoremSide__(il, i)
			return
		if self.angles[ir] > 0 and self.sides[ir] > 0 and self.angles[i] > 0:
			self.sides[i] = self.__SineTheoremSide__(ir, i)
			return
		if self.sides[il] > 0 and self.sides[ir] > 0 and self.angles[i] > 0:
			self.sides[i] = self.__CosineTheoremSide__(il, i, ir)
			return
		return
	def __SimpleAngle__( self, il, i, ir):
		if self.Verbose:
			print("Using sum of angles for {:s}".format(self.__angleNames__[i]))
		return 180 - self.angles[il] - self.angles[ir]
	def __SineTheoremAngle__( self, i0, i):
		if self.Verbose:
			print("Using sine theorem for {:s}".format(self.__angleNames__[i]))
		d = self.sides[i] / self.sides[i0]
		d *= np.sin( np.pi*self.angles[i0]/180)
		if d<0: return -1
		return np.arcsin( d)*180/np.pi
	def __CosineTheoremAngle__( self, il, i, ir):
		if self.Verbose:
			print("Using cosine theorem for {:s}".format(self.__angleNames__[i]))
		d = self.sides[il] * self.sides[il]
		d += self.sides[ir] * self.sides[ir]
		d -= self.sides[i] * self.sides[i]
		d /= 2 * self.sides[il] * self.sides[ir]
		try: a = 180 * np.arccos( d) / np.pi
		except: return -1
		return a
	def __SineTheoremSide__( self, i0, i):
		if self.Verbose:
			print("Using sine theorem for {:s}".format(self.__sideNames__[i]))
		d = np.sin( np.pi*self.angles[i] / 180.0)
		d /= np.sin( np.pi*self.angles[i0] / 180.0)
		d *= self.sides[i0]
		if d<0: return -1
		return d
	def __CosineTheoremSide__( self, il, i, ir):
		if self.Verbose:
			print("Using cosine theorem for {:s}".format(self.__sideNames__[i]))
		a = np.cos( self.angles[i] * np.pi / 180.0)
		d = self.sides[il] * self.sides[il]
		d += self.sides[ir] * self.sides[ir]
		d -= 2.0 * self.sides[il] * self.sides[ir] * a
		if d <= 0: return -1.0
		return np.sqrt( d)


##
## Uncomment for testing
##
##print( "Test three sides")
##T = Triangle([10.0,12.0,7.0])
##T.Print()
##
##print( "\nTest two sides and angle in-between")
##T.sides = np.array([10.0,-1.0,7.0])
##T.angles = np.array([-1.0,87.953,-1.0])
##T.Solve()
##T.Print()
##
##print( "\nTest two sides and angle on the side")
##T.sides = np.array([10.0,12.0,-1.0])
##T.angles = np.array([-1.0,87.953,-1.0])
##T.Solve()
##T.Print()
##
##print( "\nTest one side and two angles")
##T.sides = np.array([-1.0,12.0,-1.0])
##T.angles = np.array([56.388,-1.0,35.659])
##T.Solve()
##T.Print()
##
##print( "\nTest incomplete data")
##T.sides = np.array([-1.0,-1.0,-1.0])
##T.angles = np.array([56.388,-1.0,35.659])
##T.Solve()
##T.Print()
##

print( "Triangle calculations.\nSend Control-C to stop.\n")
T = Triangle()
T.Verbose = True
while True:
	T.SolveInteractive()
	print("")
