Height by Triangulation

(Python 3.x)

Determines an object height from three geological compass inclination measurements and one base distance

This code solves a classic triangulation task.

Elevations above the horizon are positive, below - negative.

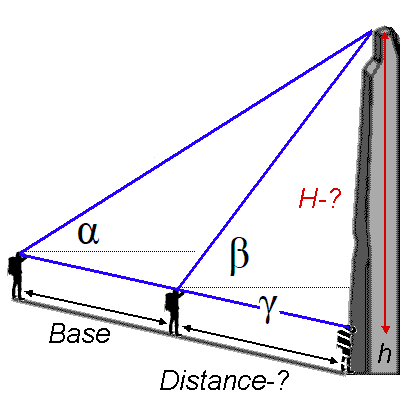

1. Use the compass clinometer to measure elevation \(\alpha\) to the object’s top;

2. Move towards the object by distance Base;

3. Measure elevation \(\beta\) to the object’s top;

4. Optionally measure the ground slope \(\gamma\) by pointing clinometer to the object’s bottom (on a horizontal ground use zero);

5. Don't forget to add your "eye-height" h.

Download source code: Triangulation_Height.py

import numpy as np

class TriangulationHeight:
	def __init__( self, base = 1.0, a = [0.0,0.0,0.0]):
		self.__angleNames__ = ['alpha', 'beta', 'gamma']
		self.Base = base
		self.angles = np.array( a)
		self.Verbose = False
		self.Solve()
		return
	def Solve( self):
		tangents = np.pi * self.angles / 180.0
		tangents = np.tan( tangents)
		dt1 = tangents[0] - tangents[2]
		dt2 = tangents[1] - tangents[2]
		cosGamma = np.cos( np.pi * self.angles[2] / 180.0)
		try:
			a = dt1 * dt2
			b = dt2 - dt1
			if a == 0.0 and b == 0.0:
				self.Height = 0.0
				self.Distance = -999.25
				if self.Verbose: print( "Distance undefined")
				return
			self.Height = self.Base * a / b
			self.Distance = self.Height / tangents[1]
			self.Height *= cosGamma
		except:
			if self.Verbose: print( "Incorrect input data")
			self.Height = -999.25
			self.Distance = -999.25
		return
	def Print( self):
		if self.Verbose:
			print( "Base = {:.3f}".format( self.Base))
			print( "Angles = {:.1f} and {:.1f}".format( self.angles[0], self.angles[1]))
			print( "Slope = {:.1f}".format( self.angles[2]))
			print( "Solution:")
		print( "Height = {:.3f}".format( self.Height))
		print( "Distance = {:.3f}".format( self.Distance))
		return
	def SolveInteractive( self):
		self.Base, self.angles = self.__getInput__( "Base {:s} {:s} {:s}".format(
			self.__angleNames__[0], self.__angleNames__[1], self.__angleNames__[2]))
		self.Solve()
		self.Print()
		return
	def __getInput__(self, question):
		i = 0
		s = str( input( question + " = "))
		ss = s.split(" ")
		try: a = float( ss[0])
		except: a = 1.0
		try: b = float( ss[1])
		except: b = 0.0
		try: c = float( ss[2])
		except: c = 0.0
		try: d = float( ss[3])
		except: d = 0.0
		return a, np.array( [b,c,d])
##
## Uncomment for testing
##
##print( "Test complete data")
##T = TriangulationHeight(30.0, [10.0,17.0,-8.0])
##T.Print()
##
##print( "\nTest incomplete data")
##T.angles = np.array([-8.0,-8.0,-8.0])
##T.Solve()
##T.Print()
##
print( "Triangulation for object height.\nUse positive angles above horizon and neqative below.\nSend Control-C to stop.\n")
T = TriangulationHeight()
T.Verbose = True
while True:
	T.SolveInteractive()
	print("")
