Object Size by Triangulation

(Python 3.x)

Determines a remote body size and height from three geological compass inclination measurements and one base distance

This code solves a classic triangulation task.

Elevations above the horizon are positive, below - negative.

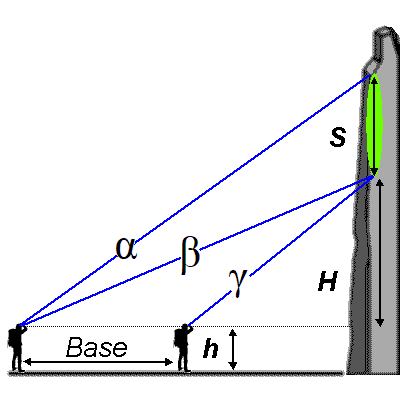

1. Use the compass clinometer to measure elevation \(\alpha\) to the object’s top;

2. Use the compass clinometer to measure elevation \(\beta\) to the object’s bottom;

3. Move towards the object by distance Base;

4. Measure elevation \(\gamma\) to the object’s bottom;

5. Don't forget to add your "eye-height" h.

Download source code: Triangulation_Size.py

import numpy as np

class TriangulationSize:
	def __init__( self, base = 1.0, a = [5.0,4.0,8.0]):
		self.__angleNames__ = ['alpha', 'beta', 'gamma']
		self.Base = base
		self.angles = np.array( a)
		self.Verbose = False
		self.Solve()
		return
	def Solve( self):
		tangents = np.pi * self.angles / 180.0
		tangents = np.tan( tangents)
		dt1 = tangents[2] - tangents[1]
		try:
			if dt1 <= 0.0:
				if self.Verbose: print( "Incorrect input data")
				self.Distance = -999.25
				self.Height = -999.25
				self.Size = -999.25
				return
			self.Distance = self.Base * tangents[1] / dt1
			self.Height = self.Distance * tangents[2]
			self.Size = (self.Distance+self.Base) * tangents[0]
			self.Size -= self.Height
		except:
			if self.Verbose: print( "Incorrect input data")
			self.Distance = -999.25
			self.Height = -999.25
			self.Size = -999.25
		return
	def Print( self):
		if self.Verbose:
			print( "Base = {:.3f}".format( self.Base))
			print( "Angles = {:.1f} {:.1f} {:.1f}".format( self.angles[0], self.angles[1], self.angles[2]))
			print( "Solution:")
		print( "Distance = {:.3f}".format( self.Distance))
		print( "Height = {:.3f}".format( self.Height))
		print( "Size = {:.3f}".format( self.Size))
		return
	def SolveInteractive( self):
		self.Base, self.angles = self.__getInput__( "Base {:s} {:s} {:s}".format(
			self.__angleNames__[0], self.__angleNames__[1], self.__angleNames__[2]))
		self.Solve()
		self.Print()
		return
	def __getInput__(self, question):
		i = 0
		s = str( input( question + " = "))
		ss = s.split(" ")
		try: a = float( ss[0])
		except: a = 1.0
		try: b = float( ss[1])
		except: b = 0.0
		try: c = float( ss[2])
		except: c = 0.0
		try: d = float( ss[3])
		except: d = 0.0
		return a, np.array( [b,c,d])
##
## Uncomment for testing
##
##print( "Test complete data")
##T = TriangulationSize(30.0, [12.0,10.0,17.0])
##T.Print()
##
##print( "\nTest incomplete data")
##T.angles = np.array([8.0,8.0,8.0])
##T.Solve()
##T.Print()
##
print( "Triangulation for object height.\nUse positive angles above horizon and neqative below.\nSend Control-C to stop.\n")
T = TriangulationSize()
T.Verbose = True
while True:
	T.SolveInteractive()
	print("")
