Raster plotting

Plot rasters, such as image logs and VDLs

raster

Plots a color raster, such as VDL or an image log.

    raster (x, y, dx, dy, Mask, Source_x, Source_y, Source_dx, Source_dy)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        Mask (optional) - mask for the file search (spaces are not allowed). *.* is a default.
        Source_x (optional) - horizontal position of the source crop area. The default is 0.
        Source_y (optional) - vertical position of the source crop area. The default is 0.
        Source_dx (optional) - horizontal size of the source crop area.
            The default is from Source_x to the image right boundary.
        Source_dy (optional) - vertical size of the source crop area.
            The default is from Source_y to the image bottom boundary.

rasterover

Plots a color raster, preserving the pixel content based on the background color.

    rasterover (x, y, dx, dy, Mask, Source_x, Source_y, Source_dx, Source_dy, tColor, tTolerance)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        Mask (optional) - mask for the file search (spaces are not allowed). *.* is a default.
        Source_x (optional) - horizontal position of the source crop area. The default is 0.
        Source_y (optional) - vertical position of the source crop area. The default is 0.
        Source_dx (optional) - horizontal size of the source crop area.
            The default is from Source_x to the image right boundary.
        Source_dy (optional) - vertical size of the source crop area.
            The default is from Source_y to the image bottom boundary.
        tColor (optional) - transparent color in ARGB format, e.g. FFFFFFFF - white.
            White is a default.
        tTolerance (optional) - transparent color tolerance (by each component).
            0 is a default.

The following example generates a png file with an electric image palette scale.

Download definition file.

#
# Demonstrates raster usage

#
slide (Example_07, 356, 150, png)
    bColor = FFAA00AA
raster (50,50,256,50,Scale*.*,0,0,256,50)
label (50,10,256,30)
    Text =Palette Example
    fSize = 16
    lSize = 2
    tPosition = center

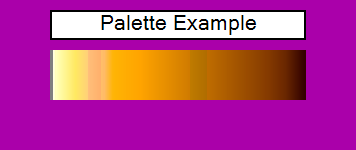

The palette looks like this:
