Recolor

Substitute image colors

recolor

Changes pixels' color based on the mask given.

    recolor (x, y, dx, dy, fColor, tColor, tTolerance)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        fColor (optional) - font colour in ARGB format, e.g. 00000000 - black.
            Black is a default.
        bColor (optional) - shape fill in ARGB format, e.g. FFFFFFFF - white.
            White is a default.
        tTolerance (optional) - color tolerance (by each component). 0 is a default.

The following example generates a png file with one rectangle and a vertical cross superimposed on it, then recolors some portion of the image from green to blue.

Download definition file.

#
# Demonstrates usage of recolor
#
slide (Example_05, 200, 300, png)
    bColor = FFAA00AA
shape (10, 10, 180, 50, rectangle)
    lSize = 2
    fColor = FF00FF00
    bColor = FF000000
shapeover (20, 70, 160, 50, cross)
    lSize = 4
    fColor = FF00FF00
recolor ( 0, 0, 100, 300, 0000FF, 00FF00, 2)

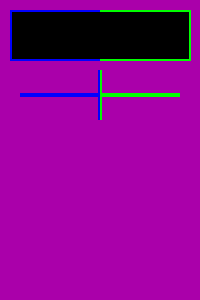

The resulting image looks like this:
