Text plotting

Outputs text

text

Plots a text from a file.

    text (x, y, dx, dy, Mask, fSize, fColor, bColor)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        Mask (optional) - mask for the file search (spaces are not allowed). *.* is a default.
        fSize (optional) - font size. The default is 60.
        fColor (optional) - font color in ARGB format, e.g. 00000000 - black.
            Black is a default.
        bColor (optional) - box background color in ARGB format, e.g. FFFFFFFF - white.
            White is a default.
        fType (optional) - font print type (as per the font names in your system).
             SystemSansSerif is a default.
        fStyle (optional) - font style. Use one of the following:
            bold
            italic
            strikeout
            underline
        calloutX (optional) - location of a callout point. -1 is a default (do not draw).
        calloutY (optional) - location of a callout point. -1 is a default (do not draw).
        calloutEllipse (optional) - the callout point ellipse radius. 2 is a default.
        Orientation (optional) - plotting orientation: 0,90,180,270,mirror,flip. 0 is a default.
        tPosition (optional) - text position: left,right,center,justified. left is a default.

textover

Plots a text from a file preserving the pixels.

    textover (x, y, dx, dy, Mask, fSize, fColor)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        Mask (optional) - mask for the file search (spaces are not allowed). *.* is a default.
        fSize (optional) - font size. The default is 60.
        fColor (optional) - font color in ARGB format, e.g. 00000000 - black.
            Black is a default.
        fType (optional) - font print type (as per the font names in your system).
             SystemSansSerif is a default.
        fStyle (optional) - font style. Use one of the following:
            bold
            italic
            strikeout
            underline
        calloutX (optional) - location of a callout point. -1 is a default (do not draw).
        calloutY (optional) - location of a callout point. -1 is a default (do not draw).
        calloutEllipse (optional) - the callout point ellipse radius. 2 is a default.
        Orientation (optional) - plotting orientation: 0,90,180,270,mirror,flip. 0 is a default.
        tPosition (optional) - text position: left,right,center,justified. left is a default.

The following two methods are used to plot labels on montages. Note that for the text in a single-line format four meta-symbols: &comma, &space, &left, and &right must be used, e.g. the following two statements are identical:

    label (10, 10, 200, 20, &leftThis&spaceis&spacea&spacetext.&right)

    label (10, 10, 200, 20)
        Text=(This is a text.)

label

Plots a label.

    label (x, y, dx, dy, Text, fSize, fColor, bColor)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        Text (optional) - label text.
        fSize (optional) - font size. The default is 60.
        fColor (optional) - font color in ARGB format, e.g. 00000000 - black.
            Black is a default.
        bColor (optional) - box background color in ARGB format, e.g. FFFFFFFF - white.
            White is a default.
        fType (optional) - font print type (as per the font names in your system). SystemSansSerif is default.
        fStyle (optional) - font style. Use one of the following:
            bold
            italic
            strikeout
            underline
        lSize (optional) - borderline size. 1 is a default.
        calloutX (optional) - location of a callout point. -1 is a default (do not draw).
        calloutY (optional) - location of a callout point. -1 is a default (do not draw).
        calloutEllipse (optional) - the callout point ellipse radius. 2 is a default.
        Orientation (optional) - plotting orientation: 0,90,180,270,mirror,flip. 0 is a default.
        tPosition (optional) - text position: left,right,center,justified. left is a default.

labelover

Plots a label while preserving the underlying pixels.

    labelover (x, y, dx, dy, Text, fSize, fColor)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        Text (optional) - label text.
        fSize (optional) - font size. The default is 60.
        fColor (optional) - font color in ARGB format, e.g. 00000000 - black.
            Black is a default.
        fType (optional) - font print type (as per the font names in your system). SystemSansSerif is default.
        fStyle (optional) - font style. Use one of the following:
            bold
            italic
            strikeout
            underline
        lSize (optional) - borderline size. 1 is a default.
        calloutX (optional) - location of a callout point. -1 is a default (do not draw).
        calloutY (optional) - location of a callout point. -1 is a default (do not draw).
        calloutEllipse (optional) - the callout point ellipse radius. 2 is a default.
        Orientation (optional) - plotting orientation: 0,90,180,270,mirror,flip. 0 is a default.
        tPosition (optional) - text position: left,right,center,justified. left is a default.

The following example generates a png file with some text.

Download definition file.

#
# Demonstrates label and labelover
#
slide (Example_03, 200, 300, png)
    bColor = FFAA00AA
    label (10, 10, 180, 50)
    Text =PETRONODE
    fSize = 12
    fColor = FF00FF00
    bColor = FF000000
    fType = Monospace
    fStyle = bold
labelover (20, 70, 160, 50)
    Text =PETRONODE
    fSize = 10
    fColor = FF004400
    fStyle = italic

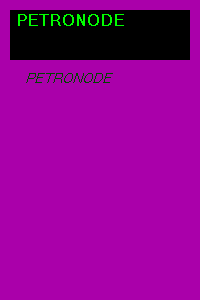

The resulting image is like this:
