Image plotting

Outputs an image


Plots an image on the slide.

    image (x, y, dx, dy, Mask, Source_x, Source_y, Source_dx, Source_dy)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        Mask (optional) - mask for the file search (spaces are not allowed). *.* is a default.
        Source_x (optional) - horizontal position of the source crop area. The default is 0.
        Source_y (optional) - vertical position of the source crop area. The default is 0.
        Source_dx (optional) - horizontal size of the source crop area.
            The default is from Source_x to the image right boundary.
        Source_dy (optional) - vertical size of the source crop area.
            The default is from Source_y to the image bottom boundary.
        Orientation (optional) - plotting orientation: 0,90,180,270,mirror,flip.
            0 is a default.

imageover

Plots an image on the slide, preserving the pixel content based on the superimposed image background color and tolerance.

    imageover (x, y, dx, dy, Mask, Source_x, Source_y, Source_dx, Source_dy, tColor, tTolerance)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        Mask (optional) - mask for the file search (spaces are not allowed). *.* is a default.
        Source_x (optional) - horizontal position of the source crop area. The default is 0.
        Source_y (optional) - vertical position of the source crop area. The default is 0.
        Source_dx (optional) - horizontal size of the source crop area.
            The default is from Source_x to the image right boundary.
        Source_dy (optional) - vertical size of the source crop area.
            The default is from Source_y to the image bottom boundary.
        tColor (optional) - transparent color in ARGB format, e.g. FFFFFFFF - white.
            White is a default.
        tTolerance (optional) - transparent color tolerance (by each component).
            0 is a default.
        Orientation (optional) - plotting orientation: 0,90,180,270,mirror,flip.
            0 is a default.

The following example generates a png file with PETRONODE logos superimposed on it.

Download definition file.

#
# Demonstrates image and imageover
#
slide (Example_02, 200, 300, png)
    bColor = FFAA00AA
image (10, 10, 100, 50)
    Mask = petro*.gif
imageover (20, 70, 50, 100)
    Mask = petro*.gif
    tColor = 000000
    tTolerance = 2
    Orientation = 90

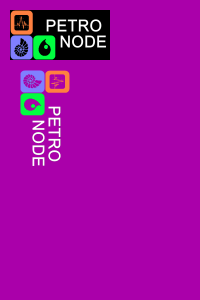

The resulting image is like this:
