Shape plotting

Plots rectangles, ellipses, etc.

shape

Plots a basic shape.

    shape (x, y, dx, dy, Shape, lSize, fColor, bColor)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        Shape (optional) - shape form. Use:
            rectangle (default),
            ellipse,
            cross,
            xcross,
            upline,
            dnline,
            vline
            hline
        lSize (optional) - line size. The default is 1.
        fColor (optional) - font colour in ARGB format, e.g. 00000000 - black.
            Black is a default.
        bColor (optional) - shape fill in ARGB format, e.g. FFFFFFFF - white.
            White is a default.

shapeover

Plots a basic shape while preserving the background.

    shapeover (x, y, dx, dy, Shape, lSize, fColor)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        Shape (optional) - shape form. Use:
            rectangle (default),
            ellipse,
            cross,
            xcross,
            upline,
            dnline,
            vline
            hline
        lSize (optional) - line size. The default is 1.
        fColor (optional) - font colour in ARGB format, e.g. 00000000 - black.
            Black is a default.

unconformity

Plots a geological symbol of unconformity (a jagged line), with a caption.

    unconformity (x, y, dx, dy, Text, fSize, fColor, bColor, topColor, bottomColor)
        x (optional) - horizontal position. The default is 0.
        y (optional) - vertical position. The default is 0.
        dx (optional) - horizontal size. The default is from the x to the slide right boundary.
        dy (optional) - vertical size. The default is from the y to the slide bottom boundary.
        Text (optional) - label text.
        fSize (optional) - font size. The default is 60.
        fColor (optional) - font color in ARGB format, e.g. 00000000 - black.
            Black is a default.
        fType (optional) - font print type (as per the font names in your system). SystemSansSerif is default.
        fStyle (optional) - font style. Use one of the following:
            bold
            italic
            strikeout
            underline
        lSize (optional) - the borderline size. 1 is a default.
        captionX (optional) - location of the caption point. -1 is a default (do not draw).
        captionY (optional) - location of the caption point. -1 is a default (do not draw).
        topColor (optional) - color above the unconformity line. white is a default.
        bottomColor (optional) - color below the unconformity line. white is a default.

The following example generates png file with rectangle and vertical cross superimposed.

Download definition file.

#
# Demonstrates shape and shapeover
#
slide (Example_04, 200, 300, png)
    bColor = FFAA00AA
    shape (10, 10, 180, 50, rectangle)
    lSize = 2
    fColor = FF00FF00
    bColor = FF000000
shapeover (20, 70, 160, 50, cross)
    lSize = 4
    fColor = FF00FF00

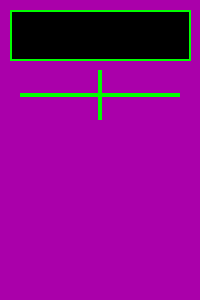

The resulting image looks like this:
